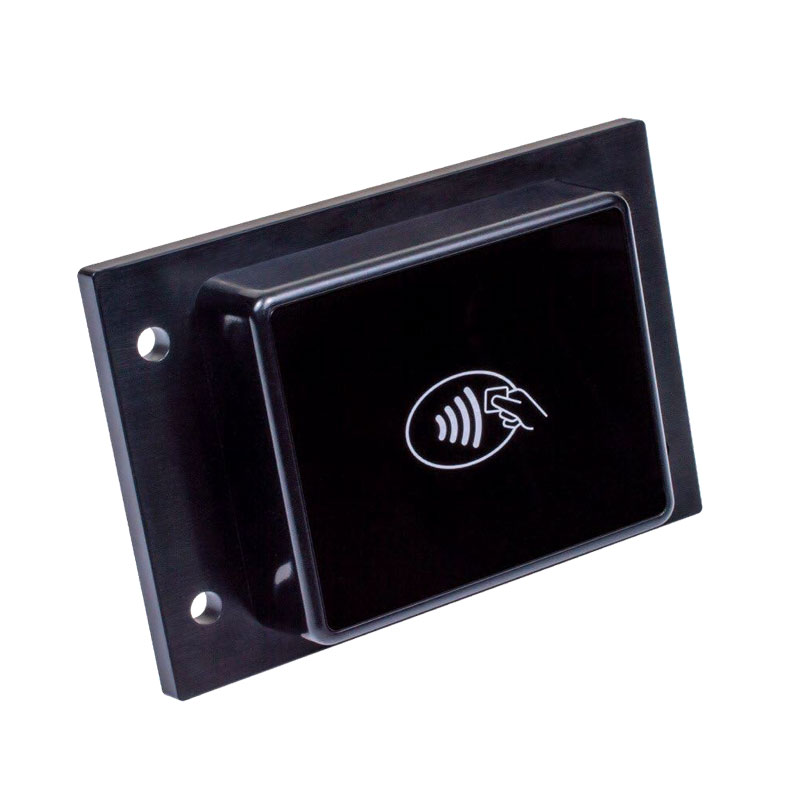

Go Unattended Technical Specifications
| CPU | Secure ARM Cortex M4 |
| Buttons | On/Off button |
| Smart Card Reader | Friction type |
| Contactless Reader | NFC-A, ISO 14443 Type A NFC-B, ISO 14443 Type B NFC-F, Felica NFC-V, ISO 15693 |
| Contactless Payments | VISA payWave, MasterCard Contactless, American Express ExpressPay, Discover D-Pas |
| Connectors | USB Type-C port |
| Wired Communication | USB (device) RS-232 |
| OS Compatibility | Windows |
| LED Indication | Contactless payment status |
| Audio Features | Electromagnetic buzzer |
| Power Supply | DC 5 V through USB |
| Battery | Rechargeable Li-Po Battery 3.7 V, 500 mAh |
| Reliability | 1,000,000 magnetic card swipes 500,000 chip card cycles |
| Certificates | CE PCI 6.x EMV Level 1 Contactless TQM IP65 IK08 |
| Dimension W x D x H | 105 x 22 x 73 mm |
| Weight | 95 g |
| Operational Temperature | -10 °C to 40 °C / 5 to 90% RH |
| Storage Temperature | -15 °C to 50 °C / 5 to 90% RH |
| Other Box Contents | 90 cm USB Type-A to USB Type-C cable |
