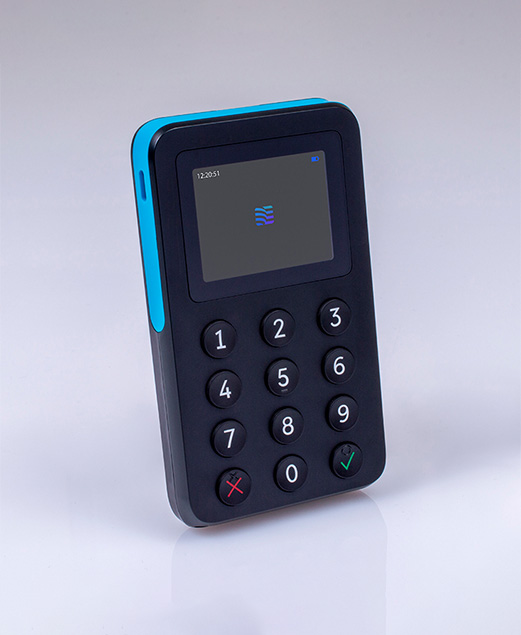

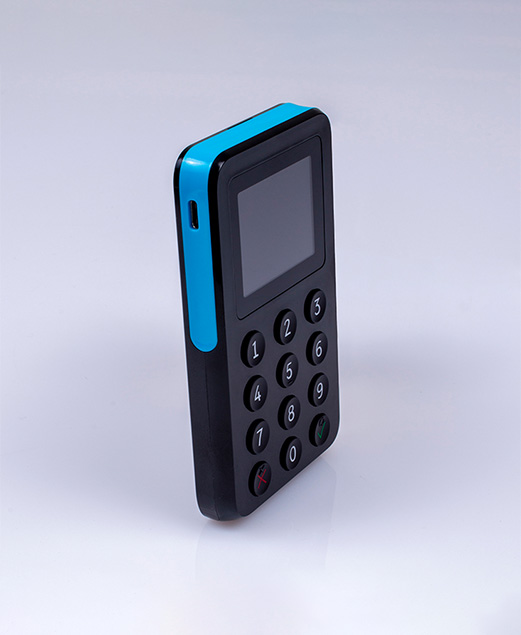

Datecs BluePad-50 Plus
The BluePad-50 Plus is a compact mobile POS terminal designed for secure chip and contactless payments. With Bluetooth connectivity, optional Wi-Fi or cellular support, and a lightweight handheld design, it’s built for merchants who need reliable payment acceptance on the go.
Pricing available to members only.
Overview
The BluePad-50 Plus is a lightweight mPOS terminal designed for businesses that need flexible, mobile payment acceptance without sacrificing security or performance. Its compact design and bright color display make it easy to use in fast-paced environments such as delivery services, restaurants, retail floors, and field operations.
Supporting chip and contactless payments, the BluePad-50 Plus connects to smartphones, tablets, and POS systems through Bluetooth Low Energy. Optional Wi-Fi and cellular connectivity expand deployment possibilities, allowing merchants to process payments wherever business happens.
With a long-lasting battery, durable design, and support for industry-standard security certifications, the BluePad-50 Plus delivers reliable payment acceptance in a portable device built for modern mobile commerce.
Technical Specs
| CPU | Secure ARM Cortex M4 |
| Buttons | On/Off button 10 numeric buttons 2 function buttons |
| Display | 2-inch color TFT display 320 × 240 px |
| Smart Card Reader | Friction type |
| Contactless Reader | NFC-A, ISO 14443 Type A NFC-B, ISO 14443 Type B NFC-F, Felica NFC-V, ISO 15693 |
| Contactless Payments | VISA payWave MasterCard PayPass American Express DPAS (Discover) |
| Connectors | RS-232 contact pins USB Type-C port Nano SIM slot (optional) |
| Wired Communication | USB (device) |
| OS Compatibility | iOS Android Windows |
| Bluetooth | Bluetooth 4.2 Low Energy |
| Wireless (optional) | Wi-Fi IEEE 802.11 b/g/n |
| Cellular Module (optional) | 2G / 4G communication |
| LED Indication | Contactless payment status |
| Audio Features | Electromagnetic buzzer |
| Power Supply | DC 5 V through USB DC 5 V through contact pins |
| Battery | Rechargeable Li-Po battery 3.7 V, 620 mAh |
| Reliability | 500,000 chip card cycles 1,000,000 button clicks |
| Certificates | CE FCC PCI PTS 5.x EMV Level 1 EMV Level 2 EMV Level 1 Contactless TQM |
| Dimensions (W × D × H) | 69 × 121 × 16 mm |
| Weight | 123 g |
| Operational Temperature | -10 °C to 40 °C / 5–90% RH |
| Storage Temperature | -15 °C to 50 °C / 5–90% RH |
| Drop Tested | 1.2 m (faces and edges) |
| Other Box Contents | BluePad-50 Plus device USB Type-A to USB Type-C cable |
